Type 3 – Standard Channel Letter Front & Back Lit

Front and Back Lit Channel Letters

Front and back lit channel letters, also called dual lit letters, shine through the acrylic face and onto the wall behind, combining a bright face with a halo glow. Each letter has an acrylic face, trimcap, and .040 aluminum returns.

  • Acrylic faces with trimcaps
  • .040 aluminum returns
  • Dual Lit/ front & back
  • Made in USA
Type 3 – Standard Channel Letter Front & Back Lit

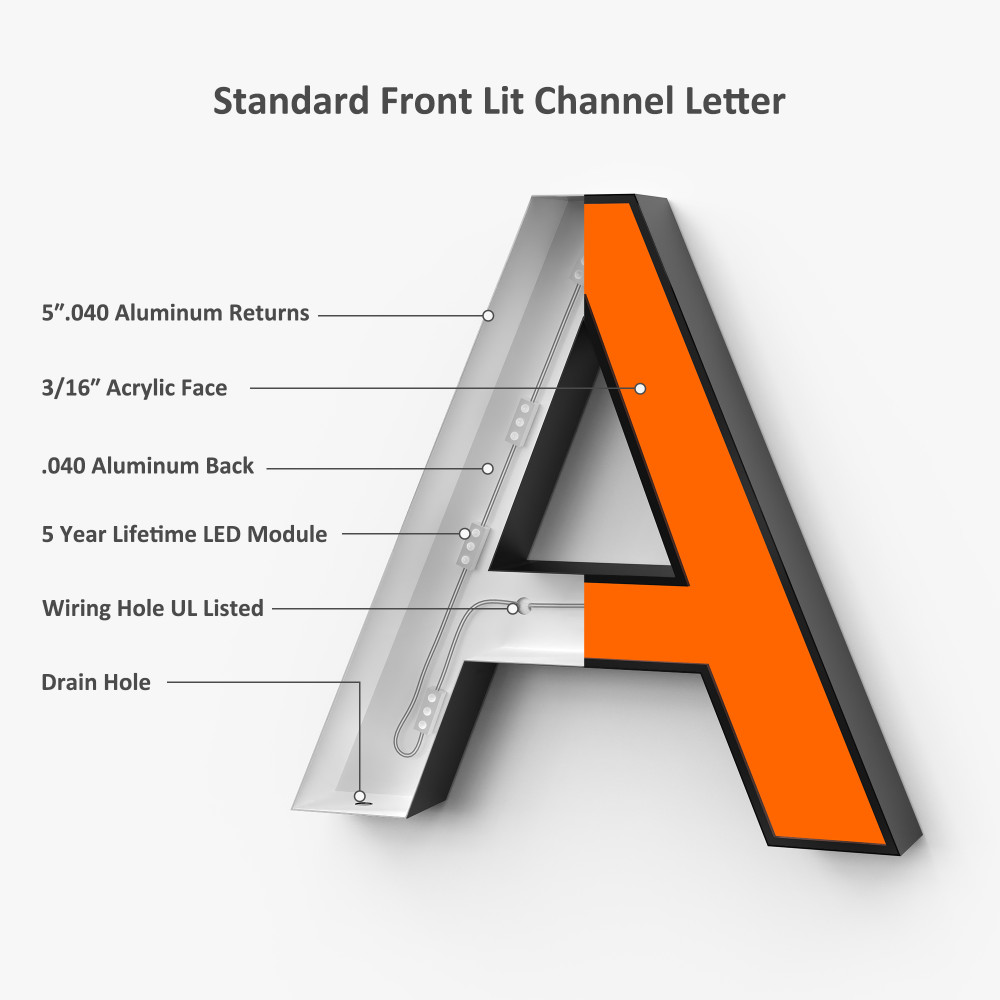

Channel letter sign detail: Type 3 – Standard Channel Letter Front & Back Lit

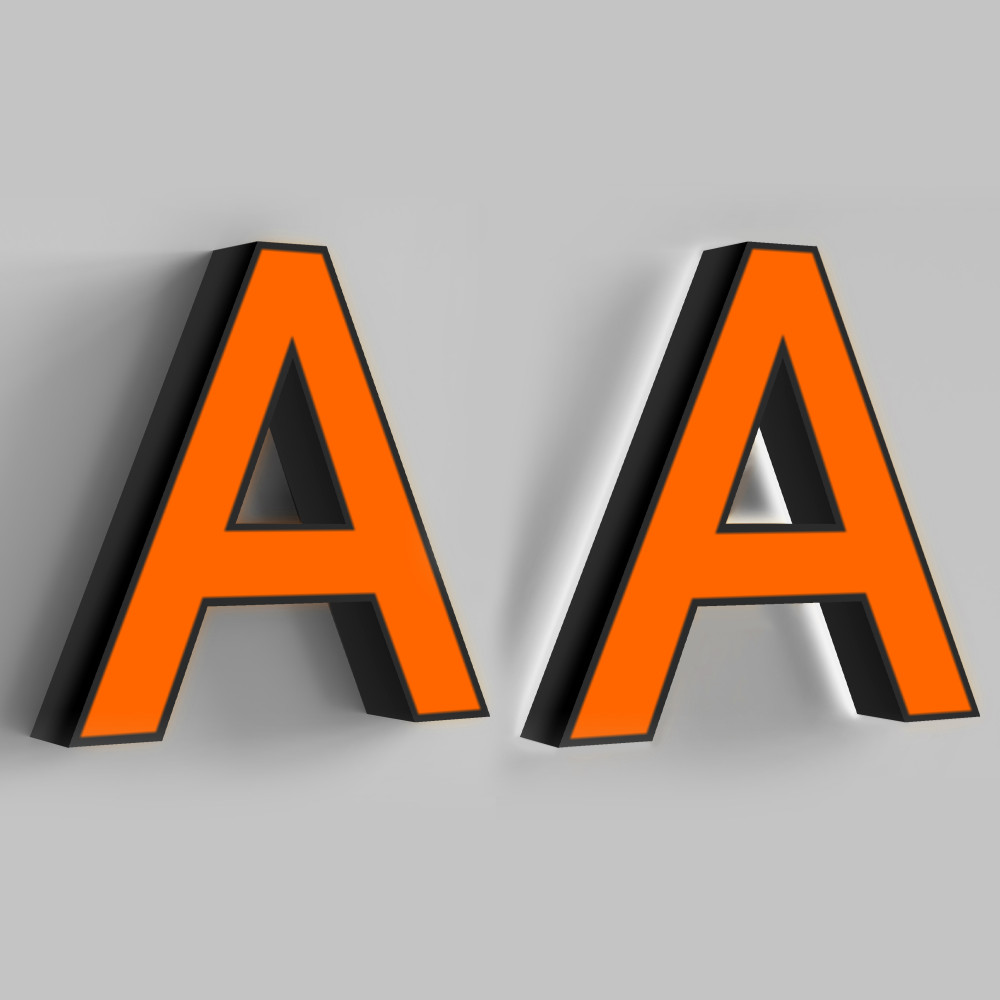

Channel letter sign detail: Type 3 – Standard Channel Letter Front & Back Lit

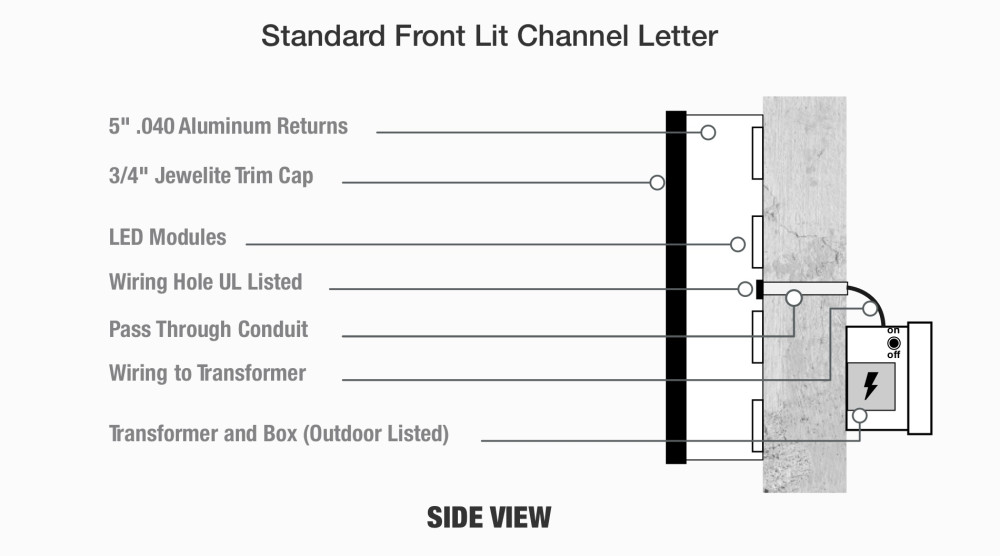

Channel letter sign detail: Type 3 – Standard Channel Letter Front & Back Lit

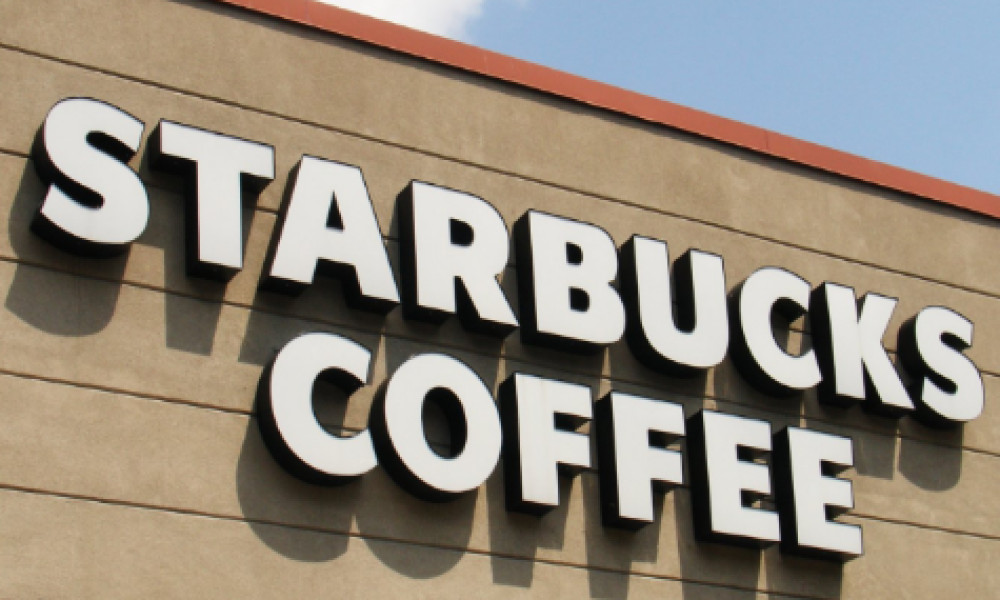

Channel letter sign detail: Type 3 – Standard Channel Letter Front & Back Lit

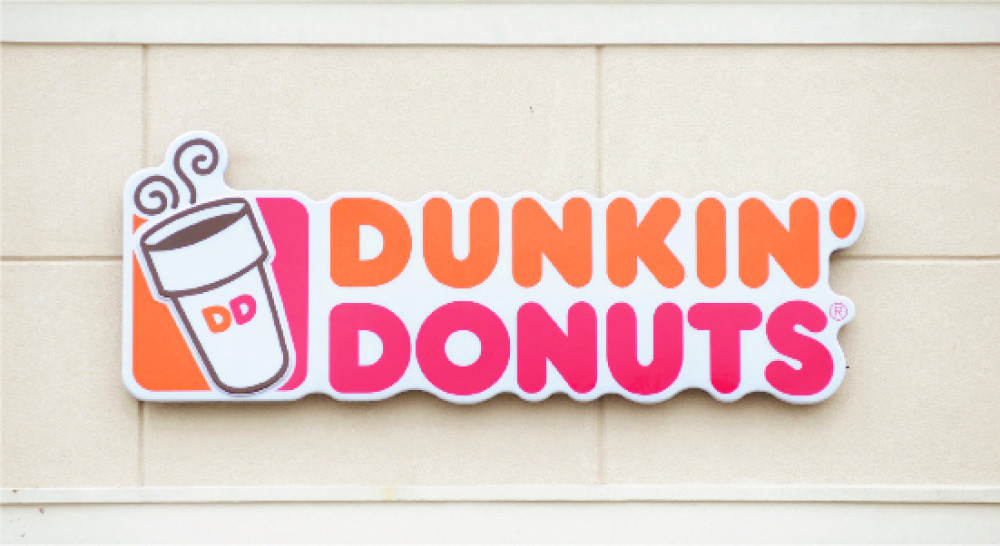

Channel letter sign detail: Type 3 – Standard Channel Letter Front & Back Lit
Start From Scratch Optional if you don’t have a file
Enter Your Text

For an instant quote - under 30 seconds

Cursive & complex fonts must send email to request quote.
Aproximate Width: 0 Inch
i

Face is the front of a channel letter sign.

Channel letter face
Option two
  • White - Acrylic
  • Lexan White - Acrylic
  • Red - Acrylic
  • Yellow - Acrylic
  • Green - Acrylic
  • Blue Lighter - Acrylic
  • Yellow - 3M vinyl.
  • Marigold - 3M vinyl.
  • Poppy Orange - 3M vinyl.
  • Tangerine - 3M vinyl.
  • Orange - 3M vinyl.
  • Poppy Red - 3M vinyl
  • Scarlet - 3M vinyl.
  • Red - 3M vinyl.
  • Dark Red - 3M vinyl.
  • Cardinal Red - 3M vinyl.
  • Regal Red - 3M vinyl.
  • Burgundy - 3M vinyl.
  • Rose Mauve - 3M vinyl.
  • Fuchsia - 3M vinyl.
  • Raspberry - 3M vinyl.
  • Electric Pink - 3M vinyl.
  • Vivid Rose - 3M vinyl.
  • Pink - 3M vinyl.
  • Plum Purple - 3M vinyl.
  • Bright Violet - 3M vinyl.
  • Royal Blue - 3M vinyl.
  • Electric Blue - 3M vinyl.
  • Blue - 3M vinyl.
  • Patriot Blue - 3M vinyl.
  • Sultan Blue - 3M vinyl.
  • Azure - 3M vinyl.
  • Light European Blue - 3M vinyl.
  • Intense Blue - 3M vinyl.
  • Sapphire - 3M vinyl.
  • Teal Green - 3M vinyl.
  • Bright Jade Green - 3M vinyl.
  • Kentucky Blue Grass - 3M vinyl.
  • Light Kelly Green - 3M vinyl.
  • Vivid Green - 3M vinyl.
  • Brilliant Green - 3M vinyl.
  • Light Lemon Yellow - 3M vinyl.
  • Bronze - 3M vinyl.
  • Silver - 3M vinyl.
  • Gold Nugget - 3M vinyl.
  • Gold Metallic - 3M vinyl. Red (3M translucent vinyl faces )
  • White - 3M vinyl.
  • Shadow Gray - 3M vinyl.
  • Silver Gray - 3M vinyl.
  • Black - 3M vinyl.
  • Blockout White - 3M Blockout
  • Blockout Black - 3M Blockout
  • Dual Color White - 3M Dual Color
  • Dual Color Black - 3M Dual Color
  • Any Color (digital translucent print for faces )
i

Trimcap is a plastic molding that surrounds the acrylic channel letter face.

Channel letter trimcap
Option two
  • Black
  • White
  • True Red
  • Green (Solid)
  • Intense Blue
  • Blue Solid
  • Bronze
  • Gold
  • Chrome
i

Return is the side of a channel letter. Return size is available in 3" or 5".

Channel letter return
Option two
  • Gloss Black
  • Ultra White
  • Hunter Red
  • Heron Blue
  • Dark Bronze
2-4 Business Days
Total
$0
10% discount
-$
Grand Total
$
  • Price shown is the price you pay — no surprises at checkout
  • Secure checkout by Elavon Converge
  • UL listed, tested before shipping, 5-year LED warranty
  • Questions? 866-436-2101 · Mon–Fri 8am–5pm PST

Front and Back Lit Channel Letters: Style Guide

Front and back lit letters, also called dual lit, glow through the face and onto the wall behind at the same time. You get the readability of a front lit sign with a halo around every letter.

How they’re built

  • Acrylic face held by a trimcap
  • .040 aluminum returns
  • LED lighting for both the face and the wall behind
  • Optional raceway for mounting and wiring

Best for

Businesses that want maximum presence after dark, such as restaurants, entertainment venues and shops on busy streets.

Sizes and ordering

Available with letters from 8 to 45 inches tall. Prices start at $166.50 for one 8 inch letter, including the 10% online discount, before options such as a power supply or raceway. Compare every style and height in our channel letter cost guide. Price is per letter by height: choose your height, enter your wording and colors above, and your total updates before you add it to the cart. Every sign is tested before it ships, with an installation pattern and wiring diagram for your installer.

Compare other channel letter styles

See all styles side by side on the channel letters page, or compare every sign type in our storefront signs guide.

Product Description

Channel Letters are 3 Dimensional Sign Elements. They are typically displayed on the facade of a building or monument sign. Channel letters are lit with LED modules which have effective light output and require very little electricity. Displaying channel letters is an intelligent way to showcase your brand in front of your customers.
  • Ready-to-install: Wiring diagrams and installation pattern are included (Installation accessories excluded)
  • Certified: UL Listed with Sign Section Labels for Outdoor Installation
  • Made in USA
  • LED illuminated

Buying Options

Front lit LED channel letter glowing on a brick wall

Front Lit

Material Options

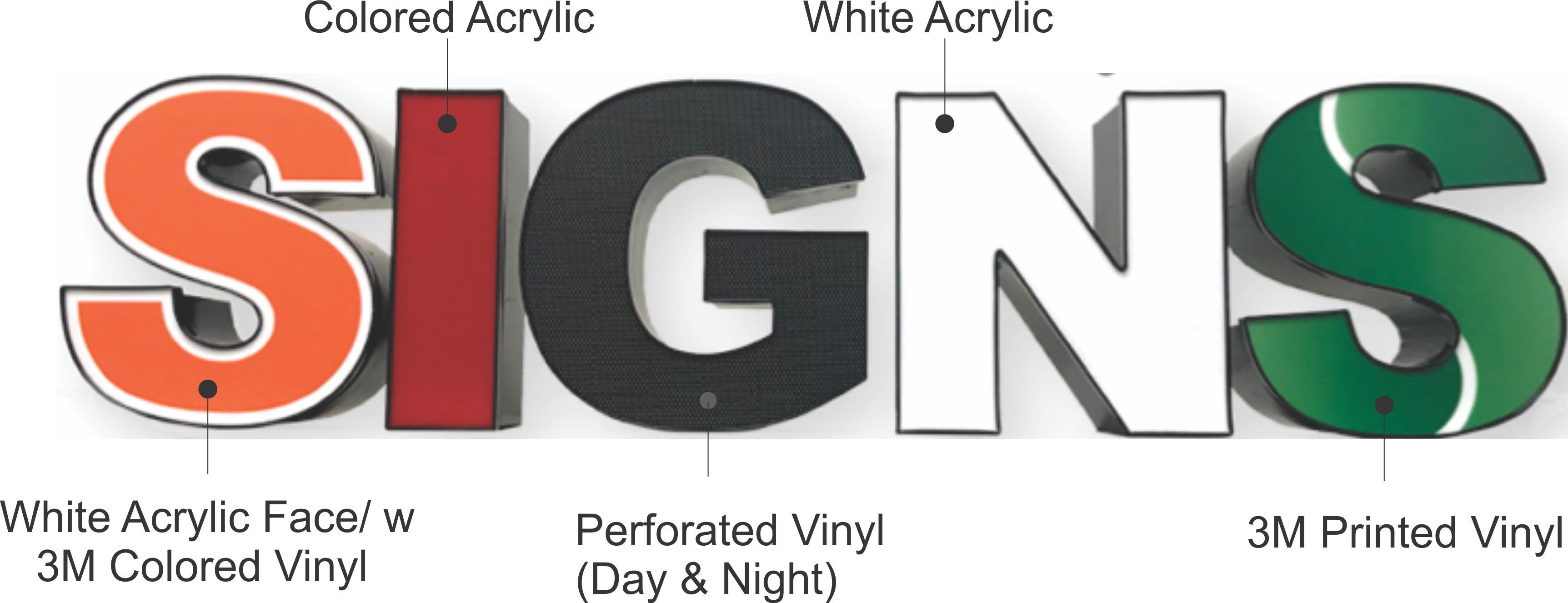

Front and Back Lit Channel Letters, image 1

California Proposition 65 warning symbolWARNING: This product can expose you to chemicals including Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to  www.P65Warnings.ca.gov .

Trim Caps are plastic molding that surrounds the acrylic face of your channel letter.
Specification
3/4" or 1" Jewelite Trim Caps
Diagram showing the trimcap around the face of a channel letter
Channel letter trimcap color chart

Returns are the sides bordering the channel letter.
Specification
3" or 5" .040" Alumet, Metals USA High Reflective Aluminum Returns
Diagram showing the aluminum return on the side of a channel letter

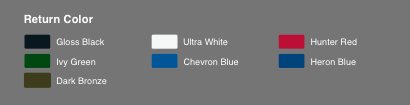

Channel letter aluminum return color chart

Acrylic Faces is a slightly transparent plastic on the front face of your channel letter.
Specification
3/16" Acrylite, Chemcast Acrylic, Palsun Lexan Faces
Diagram showing the acrylic face of a channel letter

If the color desired is unavailable from out acrylic faces, translucent colored vinyl films can be applied to the face of channel letters.
Specification
3M 3630 Translucent 3635 Day/Night Dual-Color 3635 Blockout Colored Vinyl (Vinyl Colors) 3M IJ8150 Clear Vinyl w/ 8520 Matte Lamination for Digital Print

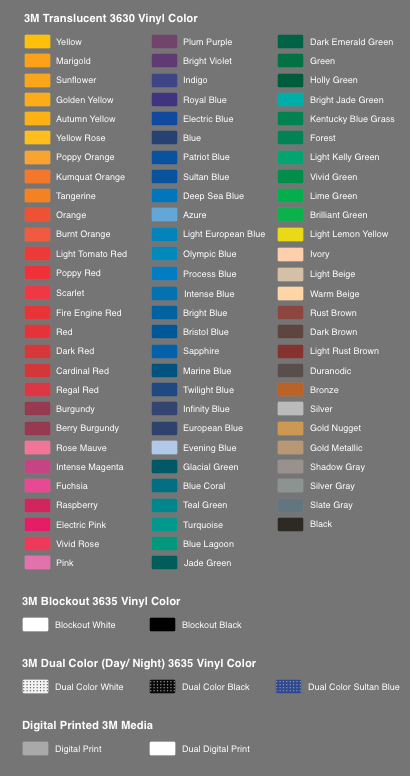

Channel letter translucent vinyl face color chart

Our standard Front lit channel letters include:
– 3/4" or 1" Trim Cap – 3" or 5" .040" Alumet, Metals USA High Reflective Aluminum Return and Backing – 3/16 Acrylic Face – LED Lights – 3' Power cord for ground and power. – Installation Guide and Mounting Pattern

Our standard Front/Back lit channel letters include:
– 3/4" or 1" Trim Cap – 3" or 5" .040" Alumet, Metals USA High Reflective Aluminum Return – 1/8" Palsun Clear Lexan Backs – 3/16 Acrylic Face – LED Lights – 3' Power cord for ground and power. – Installation Guide and Mounting Pattern

Specification
Mynice High Efficiency, 160° Beam, IP67, 9000K-10500K, 0.7W & 1.2W LED Module (5 Year Warranty)

Specification
Fang Hua HMA-60NU-RX 12V/ 5A 60W, Class 2, Constant Voltage, Constant Current, IP67, Power Supplies (5 Year Warranty) *For dry location only. Non-brand Transformer Boxes (3.5”x5.8”x13.5” for 1 transformer and 3.5”x10”x13.5“ for 2 transformers)

Specification
Size: 5.5" height and 3.5" depth Customizable length from 10" to 46" For wider applications, multiple segments are used to achieve the desired length Accessories:
  • Raceway base (each segment)
  • Raceway cover (each segment)
  • End caps x2 (each raceway)
  • Connect plates x2 (each segment)
  • Mounting brackets x4 (each segment)
  • Self-tapping screws x20 (each segment)
Installation Guide:
Channel letter raceway installation parts laid out
List out parts
Channel letter raceway assembly with end caps
Assemble Raceway
Mounting hangers installed on a channel letter raceway
Put Hanger on
StorefrontSignOnline.com (SSO for short) warrants that Front Lit Letters, Front & Back Lit Letters, Front Lit Logo Shapes Sign, and Front & Back Lit Logo Shapes Sign will be free from defects in materials and workmanship for a period of five (5) years from the date of shipment. Should there be a malfunction covered under this warranty, the buyer must notify SSO prior to taking any action. To proceed with any work or repairs on signs under warranty without notifying SSO automatically voids any warranty.
If the product proves defective during the warranty period, SSO , at its option, will: (1) Repair the product, at no charge for parts or telephone/email support (2) Replace the product with an equivalent product which may be new or refurbished
SSO and inspects all signs for proper operation prior to shipment. In addition, all signs are shipped in packaging that meets or exceeds industry standards for common carrier shipment. Therefore, it is the responsibility of the party receiving the shipment to inspect the packaging for any damage prior to accepting shipment. If packaging is damaged – inspect all contents for damages before signing. In the event that shipping damage is determined, it is the responsibility of the customer receiving the shipment to file a claim with the carrier and notify by email TR@StorefrontSignOnline.com or call 866-436-2066 Any damages incurred between shipment from our plant and final destination will not be the responsibility of SSO, but will fall on the carrier.
This warranty does not apply to damages resulting from acts of God, accidental negligence, vandalism or misuse. These warranties shall not apply to any defect, failure or damage caused by improper use, installation or care. SSO shall not be obligated under this warranty.
The above warranties are given by SSO with respect to this product and its related items in lieu of any other warranties, express or implied. It is the responsibility of SSO repair defective products and related items as the sole remedy provided to the customer for honor of this warranty.

A: For standard channel letters and shapes between 16" to 24", orders will be completed within 2-4 business days. If vinyl is needed or your letters oversize this may extend your turnaround time.

A: Yes. The price sheet reflects automated quote calculated by the system. Please Note: Area(s) of your Text or Logos that are too small to be fabricated properly with Aluminum Returns may need to be altered before beginning production. This may incur additional charges and cause a delay on your completion time.

A: Shaped channel letter or light box: 58.5"x 136" Square or rectangle light box: 48" x 72", 36" x 96", 12" x 136", 24" x 136", 30" x 136" Rounded light box: 48" x 48" Oval light box: 48" x 72", 36" x 96", 12" x 136", 24" x 136", 30" x 136". Smallest stroke should be no less than 2". Please Note: Area(s) of your Text or Logos that are too small to be fabricated properly with Aluminum Returns may need to be altered before beginning production. This may incur additional charges and cause a delay on your completion time.

A: All files submitted must be Vector and scaled to your specifications. The shape of the channel letter should also be simplified before uploading. Avoid uploading complex lettering or shapes. Convert all colors to CMYK for better color output. Please Note: SSO does not guarantee color matching.

A: Yes. This information is included with your installation guide along with your Channel letter order.

A: Yes. Optional 3-Wire, 16G, 8-Foot, 3 Outlets, 120V Flat Plug Extension Cord can be ordered.

A: Please see details at Upload Image Steps .
