Type 4 – Hidden Back/ Halo Lit

Halo Lit Channel Letters

Halo lit channel letters have solid stainless steel faces, so the LED light shines out the back and draws a glowing halo on the wall around each letter. Faces and returns are welded stainless steel, sanded, and painted.

  • Fabricated stainless steel welded faces and returns
  • Prepped, smooth sanded and painted
  • Multiple colors available
  • Made in USA
Type 4 – Hidden Back/ Halo Lit

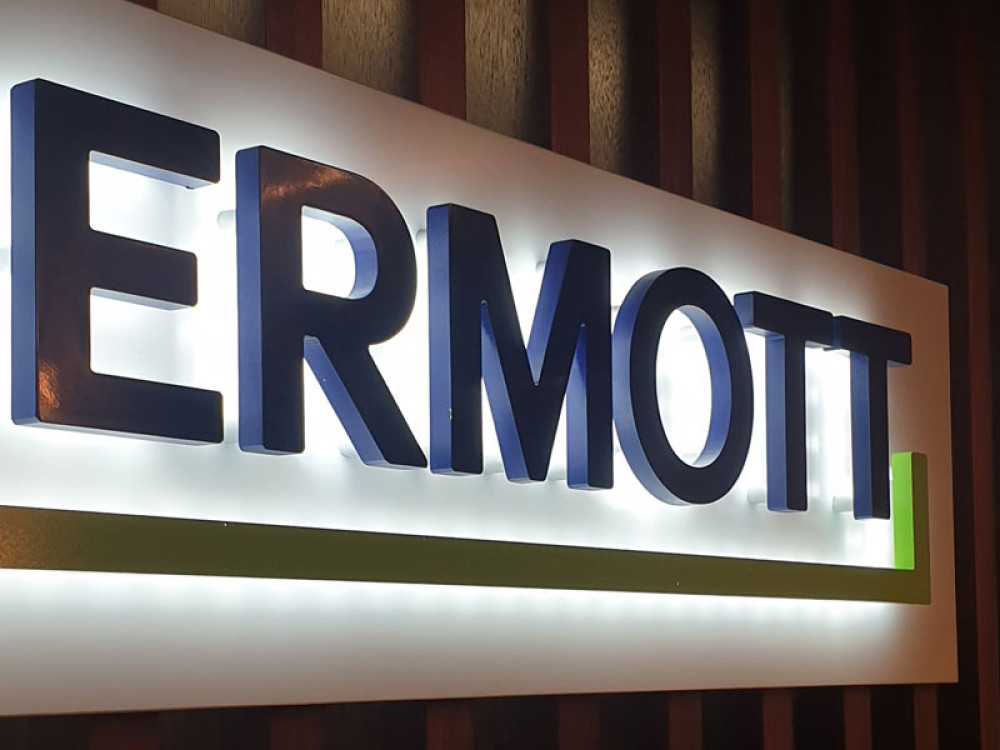

Channel letter sign detail: Type 4 – Hidden Back/ Halo Lit

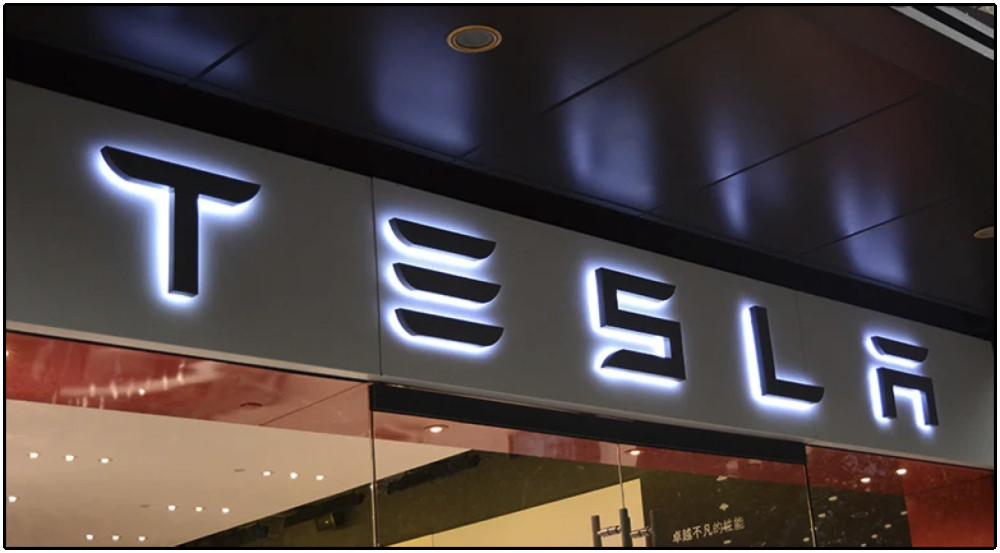

Channel letter sign detail: Type 4 – Hidden Back/ Halo Lit

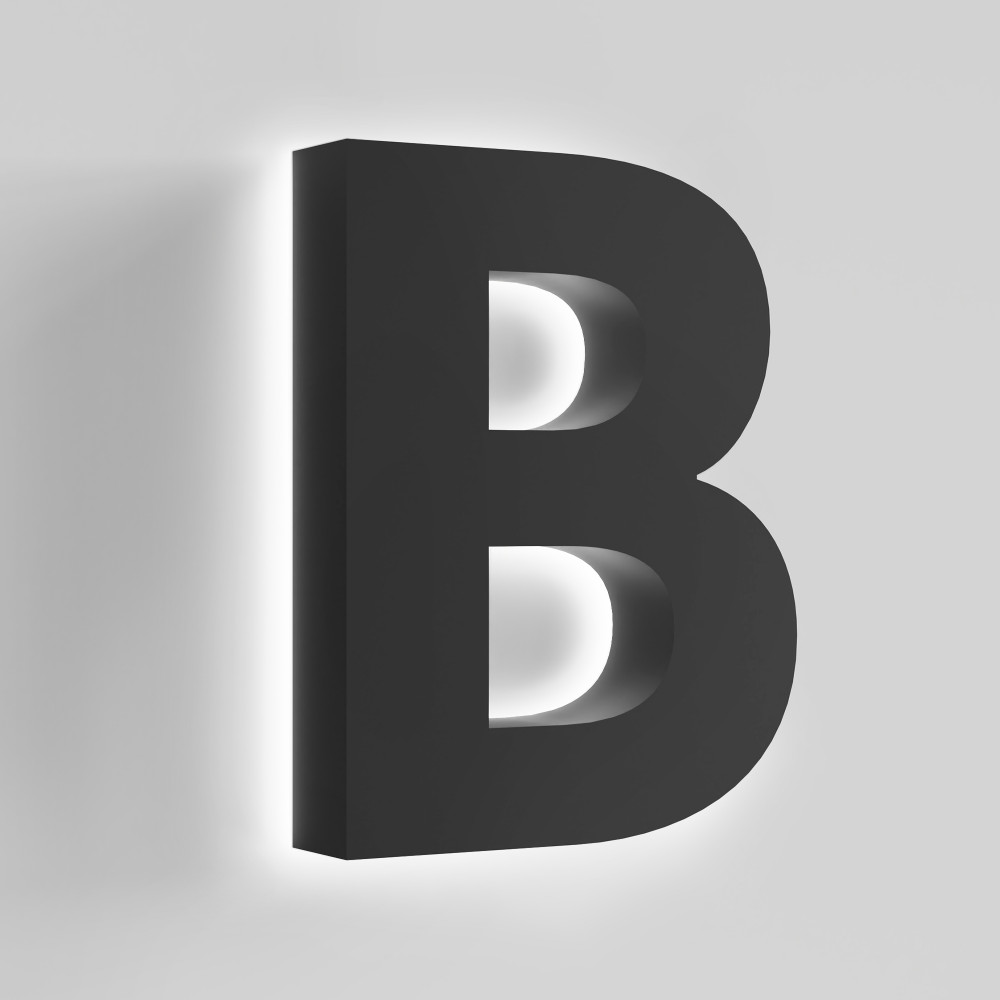

Channel letter sign detail: Type 4 – Hidden Back/ Halo Lit
Start From Scratch Optional if you don’t have a file
Enter Your Text

For an instant quote - under 30 seconds

Cursive & complex fonts must send email to request quote.
Aproximate Width: 0 Inch
i

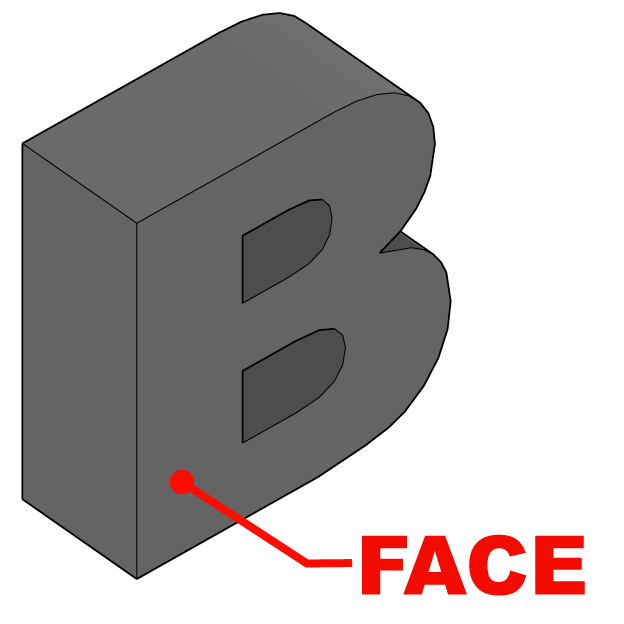

Face is the front of a channel letter sign.

Channel letter face
Option two
  • Yellow
  • Sunflower
  • Golden Yellow
  • Poppy Orange
  • Kumquat Orange
  • Orange
  • Light Tomato Red
  • Dark Red
  • Cardinal Red
  • Burgundy
  • Intense Magenta
  • Raspberry
  • Vivid Rose
  • Plum Purple
  • Royal Blue
  • Blue
  • Bright Blue
  • Brilliant Green
  • Mirrored Stainless Ste
  • Light Tomato Red
  • Bright Blue
  • Teal Green
  • Turquoise
  • Dark Red
  • Tea Green
  • Dark Emerald
  • Green
  • Light Kelly Green
  • Vivid Green
  • Lime Green
  • Brilliant Green
  • Ivory
  • Rust Brown
  • Duranodic
  • White
  • Shadow Gray
  • Black
  • Gold Nugget
  • Gold Nugget 2
  • Gold Matallic
  • Mirrored Stainless Steel
  • Brushed Stainless Steel
  • Silver
i

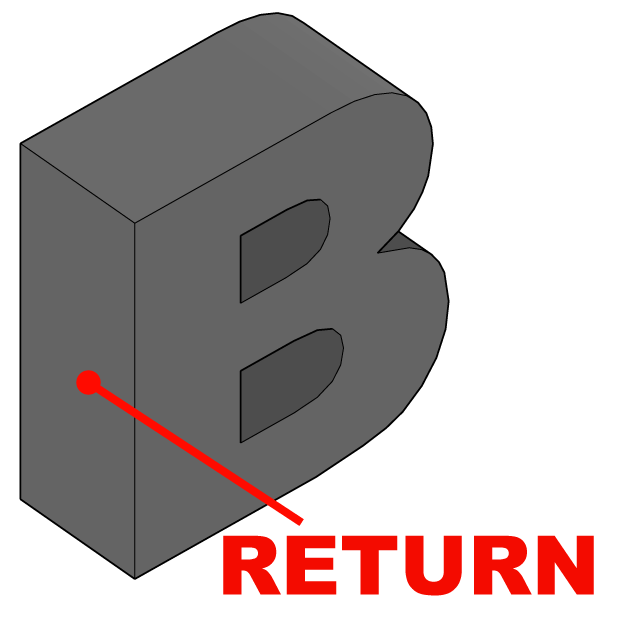

Return is the side of a channel letter. Return size is available in 2" or 3".

Channel letter return
Same as Face color
Same as Face color
8-12 Business Days
Total
$0
10% discount
-$
Grand Total
$
  • Price shown is the price you pay — no surprises at checkout
  • Secure checkout by Elavon Converge
  • UL listed, tested before shipping, 5-year LED warranty
  • Questions? 866-436-2101 · Mon–Fri 8am–5pm PST

Halo Lit Channel Letters: Style Guide

Halo lit letters have solid metal faces, so the letter stays dark and the light shines out of the back to draw a glowing outline on the wall. By day they look like painted metal dimensional letters.

How they’re built

  • Welded stainless steel faces and returns
  • Sanded and painted in your color
  • LED lighting that shines out the back of each letter

Best for

Salons, boutiques, clinics, law and professional offices, and brands that want an upscale, understated sign.

Sizes and ordering

Available with letters from 8 to 36 inches tall. Prices start at $288.00 for one 8 inch letter, including the 10% online discount, before options such as a power supply or raceway. Compare every style and height in our channel letter cost guide. Price is per letter by height: choose your height, enter your wording and colors above, and your total updates before you add it to the cart. Every sign is tested before it ships, with an installation pattern and wiring diagram for your installer.

Compare other channel letter styles

See all styles side by side on the channel letters page, or compare every sign type in our storefront signs guide.

Product Description

Front view of a halo lit channel letter with a solid stainless steel face

Front

Back view of a halo lit channel letter showing the LED modules

Back

This channel letter has a solid stainless steel face and return available in 35+ colors. Similar to our standard front/back lit, this stainless steel letter has a clear lexan back so the LED shines through and hits the wall to achieve a halo effect.

  • Ready-to-install: Wiring diagrams and installation pattern are included (Installation accessories excluded)
  • Certified: UL Listed with Sign Section Labels for Outdoor Installation
  • Made in USA
  • LED illuminated

California Proposition 65 warning symbolWARNING: This product can expose you to chemicals including Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov .

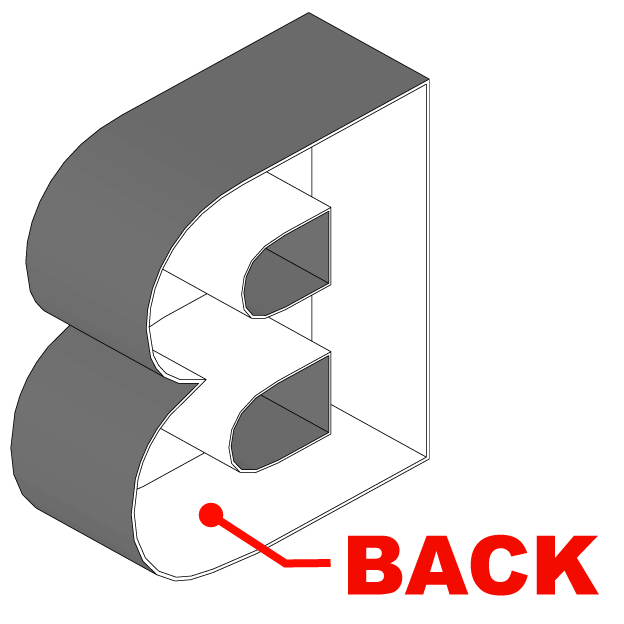

Backs are the back board of the Reverse Lit letter.
Specification
1/8” Clear Lexan
Diagram of the clear Lexan back on a halo lit channel letter

Faces are the front stainless steel surface of Reverse Lit letters
Specification
0.8mm/1mm stainless steel
Diagram of the stainless steel face on a halo lit channel letter
Stainless steel channel letter face and return color chart

Returns are the sides bordering the Reverse Lit letter.
Specification
2" or 3" 0.8mm/1mm stainless steel Returns
Diagram of the stainless steel return on a halo lit channel letter
Stainless steel channel letter face and return color chart

Specification
Mynice High Efficiency, 160° Beam, IP67, 10000K - 12000K, 0.7W & 1.2W LED Module (5 Year Warranty)

Specification
Fang Hua HMA-60NU-RX 12V/ 5A 60W, Class 2, Constant Voltage, Constant Current, IP67, Power Supplies (5 Year Warranty) *For dry location only. Non-brand Transformer Boxes (3.5”x5.8”x13.5” for 1 transformer and 3.5”x10”x13.5“ for 2 transformers)

Specification
Size: 5.5" height and 3.5" depth Customizable length from 10" to 46" For wider applications, multiple segments are used to achieve the desired length Accessories:
  • Raceway base (each segment)
  • Raceway cover (each segment)
  • End caps x2 (each raceway)
  • Connect plates x2 (each segment)
  • Mounting brackets x4 (each segment)
  • Self-tapping screws x20 (each segment)
Installation Guide:
Channel letter raceway installation parts laid out
List out parts
Channel letter raceway assembly with end caps
Assemble Raceway
Mounting hangers installed on a channel letter raceway
Put Hanger on
StorefrontSignOnline.com (SSO for short) warrants that Stainless Steel Letters will be free from defects in materials and workmanship for a period of five (5) years from the date of shipment. Should there be a malfunction covered under this warranty, the buyer must notify SSO prior to taking any action. To proceed with any work or repairs on signs under warranty without notifying SSO automatically voids any warranty.
If the product proves defective during the warranty period, SSO, at its option, will:
(1) Repair the product, at no charge for parts or via telephone/email support.
(2) Replace the product with an equivalent product which may be new or refurbished.
SSO tests and inspects all signs for proper operation prior to shipment. In addition, all signs are shipped in packaging that meets or exceeds industry standards for common carrier shipment. Therefore, it is the responsibility of the party receiving the shipment to inspect the packaging for any damage prior to accepting shipment. If packaging is damaged – inspect all contents for damages before signing. Photos should also be taken as a record of evidence. In the event that shipping damage is determined, it is the responsibility of the customer receiving the shipment to file a claim with the carrier and notify by email TR@StorefrontSignOnline.com or call 866-436-2066. Any damages incurred between shipment from our plant and final destination will not be the responsibility of SSO, but will fall on the carrier.
This warranty does not apply to damages resulting from acts of God, accidental negligence, vandalism or misuse. These warranties shall not apply to any defect, failure or damage caused by improper use, installation or care. SSO shall not be obligated under this warranty.
The above warranties are given by SSO with respect to this product and its related items in lieu of any other warranties, express or implied. It is the responsibility of SSO to repair defective products and related items as the sole remedy provided to the customer for the honor of this warranty.


A: Size Limits: Minimum stroke thickness no less than 1/2" for 2" returns. Minimum stroke thickness no less than 1" for 3" returns. The largest standard size quoted is 36" x 36". Artwork exceeding this limit will be proportionately scaled down in your quoting page. Largest product size can go up to 48” x 48” but must be custom ordered and will incur additional fee. Please submit email requests for estimates beyond automated options. This option is subject to additional processing time and production fees.

A: Our system accepts PDF, EPS, or AI formats. All files submitted must be Vector and scaled to your specifications. Each letter should be outlined and simplified before uploading. If you have any trouble uploading a file, you may click the “Help” button at the bottom right and our team will contact you with a quote ASAP.

A: The standard turnaround for the stainless steel channel letters is 3 weeks plus shipping. If you order a customized Pantone-C color that is outside of the colors listed, it will take an additional 3 or more days for completion.

A: Our stainless steel letter comes standard with a 3 feet cord. Additional cord can be ordered for extra pricing.

A: Optional installation accessories are available for purchase. We offer simplified installation accessories that do no require the disassembly of letters. These include stand-off screws, mounting screws, wiring.

A: Yes. Optional 3-Wire, 16G, 8-Foot, 3 Outlets, 120V Flat Plug Extension Cord can be ordered.
